Specifications:
* Video Input: 8-ways video input /cards
* Audio Input: 8-ways audio input/cards
* Frame Rate: 240f(NTSC) 200f(PAL)
* Video Chip: TW6802, 10Bit ADC 4H Comb filter
* Display Screen: 1 / 4 / 6 / 9 / 10 / 13 / 16 / 25 / 32 / Full Screen
* Color Adjust: Adjustable Light, Contrast, Hue, Saturation by Individual Camera
* Resolution: 160X120 / 240X180 / 320X240 / 352X288 / 480X360 / 640X480
* Record Mode: Continuous / Schedule Recording / Alarm Triggering
* Compression: Enhanced MPEG4 / H.264 Format, Frame Size: .1K~2.5K
* Multi-task: Monitoring / Recording / PTZ Control / Remote / Backup
* Motion Detect: 16 Zone X Multi Area for each camera
* Storage: HDD / VDRAM / CD-RW / DAT / MO / ZIP / RAID. Up to 24 drives
* PTZ: RS422 / RS485 Controlled PTZ & Light / Power / Wiper
* Playback Speed: Forward / Back / Step / Fast 1X,2X,4x,8X / Slow 1X,1/2 X,1/4 X,1/8X
* User Right: Multi User with Personal User name/Password/User rights, Remote Users
* O.S.: Windows 2000/XP, Windows Vista
* Water Mark: Water Mark , Not Editable & Not Replaceable
* Network: PSTN / ISDN / LAN / ADSL / Internet
* Remote: LAN & ADSL: Real Time In 320X240, PSTN: 5-25fps In QCIF
* IE Remote View: Remote Browse by MS Internet Explorer
* Remote Control: Full Function Remote Control & Remote Audio Transmission
* Remote Rec: Remote Playback, Remote Recording, & Emergency Recording
* Speed Dome: Pelco-D / Pelco-P Protocols & Sequence
* E-map: Electronic map that lays out the location of video camera (At Server)/ lays out the location of Server (At Client)
* Display Mask: Support Camera mask (Just not show on Screen), Password to Playback Recording Files
* Alarm I/O Port: Support 6 ch Alarm signal input & 4 ch Relay output (SV Alarm I/O Card Needed)
Package Included:

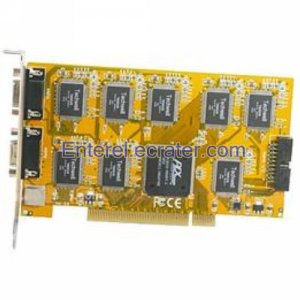

* 1 x DVR Card
* 1 x Audio Cable
* 1 x Video Cable
